File or Reject Mail by Attachment in Zimbra with Sieve

Attachments are what people search for months later, and they are what malware arrives in. Zimbra gives Sieve two tests that no RFC defines - one that asks whether a message carries an attachment at all, and one that reads the headers of every MIME part - which between them cover both the filing and the refusing.

Part of the series on Everyday Uses for Sieve Mail Filters in Zimbra.

The simplest useful version

require ["fileinto"];

if attachment {
    fileinto "Attachments";
    stop;
}

attachment is Zimbra's own test, takes no arguments, and is true when the message carries an attachment of any kind. It is the whole vocabulary: there is no attachment :name or attachment :type, so anything more specific has to come from mime_header.

Routing by file type

mime_header works like header, except it searches the headers of every MIME part rather than only the top of the message. That is where the content type and the filename live.

require ["fileinto"];

# Contracts, invoices and anything else that arrives as a PDF.
if mime_header :contains "Content-Type" "application/pdf" {
    fileinto "Documents";
    stop;
}

# Scans and photographs.
if mime_header :contains "Content-Type" ["image/jpeg", "image/png", "image/tiff"] {
    fileinto "Scans";
    stop;
}

# Spreadsheets, both formats.
if mime_header :contains "Content-Type" ["application/vnd.ms-excel",
                                         "application/vnd.openxmlformats-officedocument.spreadsheetml.sheet"] {
    fileinto "Spreadsheets";
    stop;
}

Match on Content-Type rather than on the filename when you can. The type is set by the sending client from the actual content, while the filename is just text and is the thing an attacker controls.

Matching the filename

Sometimes the filename is what you want - a supplier who always sends statement-*.pdf, for example. The name appears in two places depending on the sending client, so test both:

require ["fileinto"];

if anyof (mime_header :matches "Content-Disposition" "*statement-*.pdf*",
          mime_header :matches "Content-Type" "*statement-*.pdf*") {
    fileinto "Statements";
    stop;
}

Content-Disposition carries filename=, and Content-Type carries the older name=. Most clients set both, but not all of them, and a message that sets only one would slip past a rule that checked only the other.

Filenames with anything outside ASCII may arrive MIME-encoded, in which case a plain substring will not match. Match on the ASCII part of the name, or on the extension.

Refusing executable files

require ["mime_header", "ereject"];

if anyof (mime_header :matches "Content-Disposition" ["*.exe*", "*.scr*", "*.bat*",
                                                      "*.cmd*", "*.js*", "*.vbs*"],
          mime_header :matches "Content-Type" ["*.exe*", "*.scr*", "*.bat*",
                                               "*.cmd*", "*.js*", "*.vbs*"]) {
    ereject "Executable attachments are not accepted.";
}

Two things to understand before using this.

It is a filename check, not a content check. Renaming payload.exe to payload.pdf defeats it completely, and an executable inside a zip file is invisible to it. Treat it as tidying rather than as security - the antivirus in front of Zimbra is what actually inspects content.

ereject refuses the delivery, so Zimbra answers Postfix with 550 5.7.1 Message rejected and the sender gets a bounce. That is the right behaviour for a policy a sender should know about. If you would rather they did not know, use fileinto "Quarantine" instead, or discard to drop it silently.

Sieve is a late place to do this. Because the message has already been accepted, scanned and stored by the time the script runs, blocking attachments at the MTA is both cheaper and harder to get around. MSH Zimbra Rules works at that earlier point and can refuse a message during the SMTP session, matching on the real content type rather than on the filename.

Filing by size instead

Often the thing that matters is not what the attachment is but how big it is:

require ["fileinto"];

if size :over 10M {
    fileinto "Large messages";
    stop;
}

size takes :over or :under and a number with a K, M or G suffix. It measures the whole message, including the base64 encoding of the attachments, so a 7 MB file arrives as roughly 9.5 MB of message. Set thresholds a little above the file size you have in mind.

Applying it

None of this needs editheader, so it all works as a personal filter.

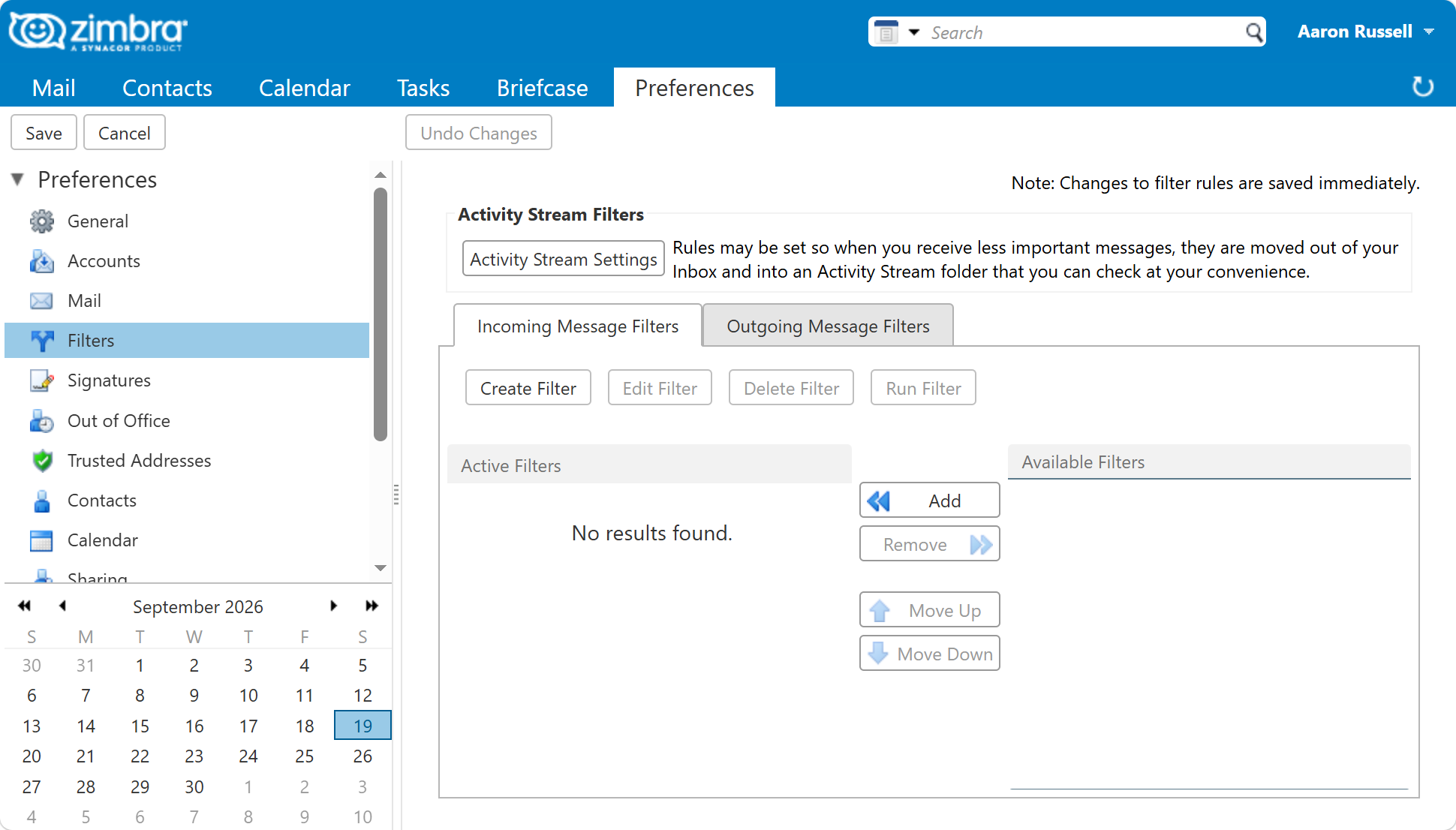

In the web client, under Preferences > Filters. The rule builder has an attachment condition for the simple case, though mime_header rules have to be written as Sieve.

From the command line, for one user:

sudo su - zimbra
zmprov ma user@example.com zimbraMailSieveScript "$(cat /tmp/attachments.sieve)"

For a whole domain, which is where an executable-file policy belongs:

zmprov md example.com zimbraAdminSieveScriptBefore "$(cat /tmp/attachments.sieve)"

Test a routing rule by sending yourself one message per file type. PDFs should land in Documents, scans and photographs in Scans, and anything with no attachment should stay in the Inbox. If a message goes to the Inbox instead of the folder you expected, open Show Original and read the real Content-Type of the part - it is often not the one you assumed.

Next in this series

Back to Everyday Uses for Sieve Mail Filters in Zimbra, or on to Answer Automatically While You Are Away.
